High power fiber laser marker system for silver cut

Fiber laser marking system, as is known to all, could both mark and cut.

Although its main function is to mark some materials, such as plastic,stainless steel, brass, as well as silver.

However, it could also cut silver or gold with a high power machine.

Here taking the 50w fiber laser marking system as example, to introduce its cut function for u.

1.Fiber laser marking system for silver cut

>>Application materials

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

Alloy and metal oxides: Anodized Aluminum

Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

>>Application Industry

1.Electrical Engineering and Electrical part and component

2.Mobile (Cover, battery, keyboard, IPhone Case)

3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft

4.Building materials,PVC pipe

5.Car motor car spare part, Instrument and meters and cutting tool

6.plastic case,aviation and aerospace,

7.military product,hardware fitting and accessory,sanitary appliance

8.food and beverage ,Medicine package and medical instrument,solar Pv industry

2.Mükemmel ışın kalitesi

The optical fiber laser is the medium mixed yb double-clad fiber, resonant cavity length, so the beam quality is very good, M2 value is 1.1, the output flare diameter can achieve 10 microns.

Excellent beam quality to ensure that optical fiber laser marking machine in a variety of material satisfying marking effects, widely applied in most metal marking industries (such as brass, titanium, steel, iron, aluminum and so on) and non metal materials like cloth, fabric, PVC, MDF, leather, acrylic, plastic and etc.

3.Light path and galvo scanner

The optical system: 1064 nm based on the high precision, vibrating mirror reflection focusing system.

Laser correction: choose red visible laser collimator’s systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.

Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.

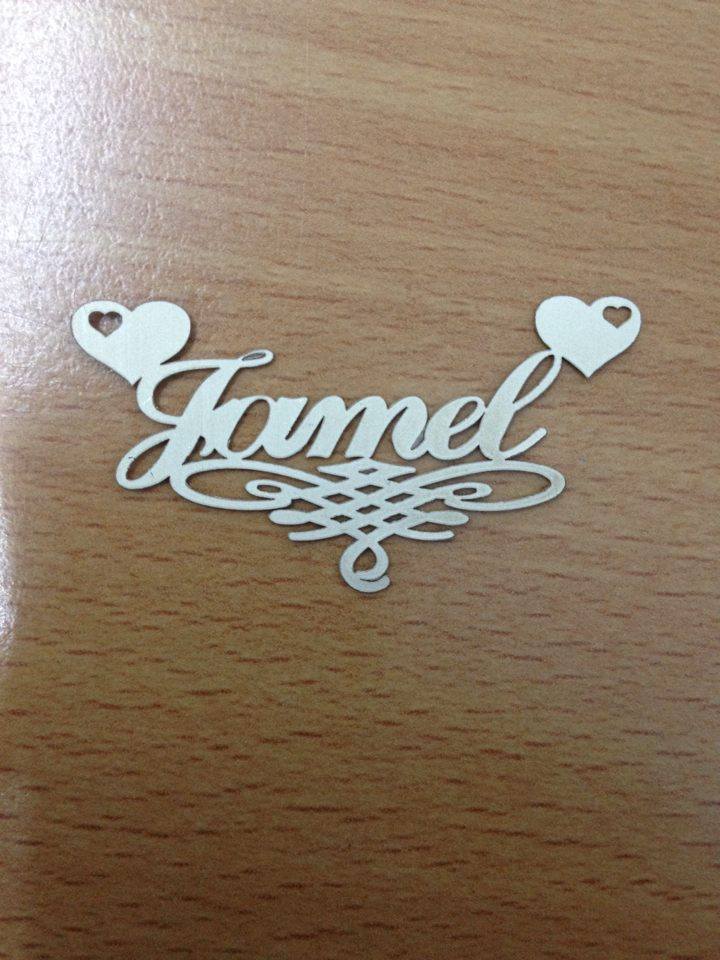

4.Marking samples

Personal information:

Email:xintian118@xtlaser.com

whatsup:+8613335191585

Skype:angelinaxtlaser@outlook.com
