Automation Laser Welding Machine

Hello Everyone,

My name is Max from XT LASER, which has 13 years history in manufacturing laser machines. Let us go to our today’s topic–Irregular Objects  laser Welding.

For normal welding, like plate to plate, pipe to pipe, it is very easy to finish, you can chose any model laser welder to get a nice result.

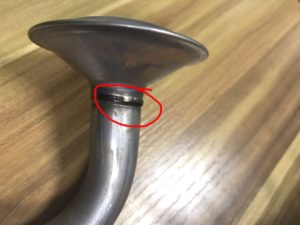

But sometimes we have to weld some irregular objects like below photos:















Then we have to choose carefully from thousands of laser welders.

For business, guarantee the welding quality and quantity, that is the key point.

Now i recommend you one model for better finishing our work, sharing as follows:



Automação LASER WELDING  MACHINE SPECIFICATION

XTW-Y200/300/400/500















Mode	XTW-Y200/300/400/500
wavelength	1064nm
Output Power	200W/300W/400W/500W
Max Pulse	100J
Beam-divergence Angle	≤8mrad
Degree of Laser Power Instability	≤±2%
Beam Diameter	0.2—3mm
Pulse Width	0.1—20ms
Frequency Range	0.1-150HZ
Control System	PLC/IPC
Power Supply	380V/50HZ-40A
Welding Area	200×100mm（Optional）
Método de resfriamento	Water Chiller
Continuous Working Time	24h
Machine Dimensions	1500×800×1500mm



Here is the video link for that irregular objects welding purpose:

https://youtu.be/pcsYph6EOiI

https://youtu.be/U8BCnL5Wg2I





 More Application:













Being widely used on aviation, machinery, mobile manufacture, communications, chemical industry, electrical equipment, hardware and automobile manufacture

Automobile Spare Parts: hydraulic jacking lever, filter, sensor, electromagnetic valve

Lithium Battery: columnar nut cap

Mobile phone: tab, backboard

Electronic Industry: sensor, motor rotor, capacitance, relay

Kitchenware & Bath Appliances: kettle, faucet, hook, trough, kitchen ventilator etc.



WELCOME TO VISIT XT LASER FACTORY















OUR SERVICE

Installation

After the machine reach the buyer’s site, seller’s engineers are responsible for machine installation and commissioning by using the special tools under the help of the buyer. And then start training the workers. The buyer will be responsible for the round-trip air tickets, accommodation, safe in buyer’s country.

Training

1. The common protection knowledge of laser safety
2. 2. The basic principle of laser module and the structure of laser cutting machine
3. The operation skills of fiber laser cutting machine
4. Equipment operation and the application notice
5. Skills of equipment daily maintenance, laser module adjustment and spare parts replacement. Training time is about 5 to 10 days.

After sales service

2 years’ warranty for the whole machine Life-long maintenance

Within the warranty period, if the machine breaks down or some parts damaged(Except the human factors and the factors of force majeure),seller should be responsible for repair for free. If the parts need to be replaced

seller will provide spare parts for free(except the wearing parts).

After the warranty period expired, the buyer only needs to pay the actual maintenance cost.
