Mini Desktop Fiber Laser Engraver
- Engraving speed up to 10000mm/s, 10 times faster than normal engraving machine
- 8K Ultra HD resolution and 0.001mm fine grain size
- Smartphone app control for easy image design, vector and bitmap editing, hand-drawn text and graphics, etc.
- 110*110mm and 175*175mm engraving work size is optional
| Model | F20 |
|---|---|
| Working Area | 110mm*110mm/175mm*175mm |
| Laser Type | 20w 1064nm Fiber Laser |
| Resolution | 2K/4K/8K/10K |
| Cutting Depth | 1.5mm on Metal, 3mm on Stone |
| Engraving Precision | 0.001mm |
| Repeat Pulse Frequency Range | 5-150(kHz) |
| Output Power | 20W |
| Input Power | 12V/20A |
| Engraving Speed | 10000mm/s |
| Net Weight | 7.5kg |
| Operation Temperature | -15-35°C |
| Laser Head Dimensions | 241×82.1×139.7mm |
| Laser Stand Dimensions | 260.5 x218 x283.5mm |
| Support File Format | JPG/ PNG/ BMP/ G-Code/ PLT/ DXF/ Ai / SVG |
| PC Support System | Windows, Lightburn |
| Mobile Support System | iOS & Android & HarmonyOS |
| Wireless Connection | BlueTooth, Wi-Fi |

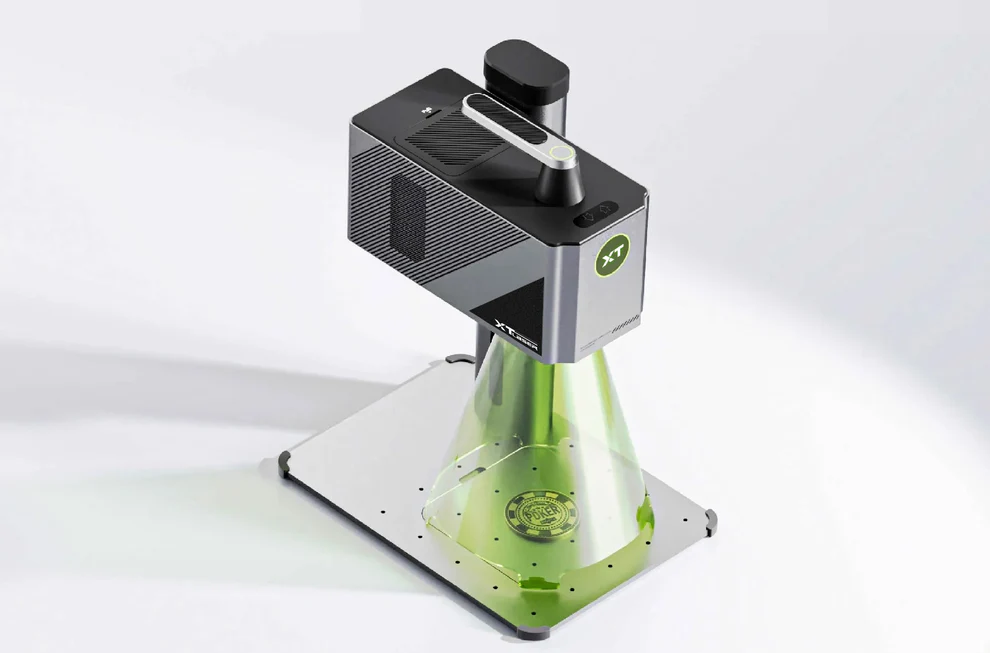

Compact design
XT LASER T2 Pro laser engraver has no bulky casing and has a compact design. Suitable for industrial and personal use.
Outstanding resolution and precision
The laser engraver exhibits amazing engraving precision, achieving 8K resolution and fine grain size of 0.001 mm.
Considerable engraving depth
The XT LASER20W laser engraver can engrave metals up to 1.5mm deep and stone up to 3mm deep.
Convenient design app
XT LASER provides this device with powerful image design, precise vector and bitmap editing, and flexible text and hand-drawn graphic tools.
Two work areas optional
The XT LASER T2 Pro offers a choice of two engraving work area sizes: 110*110mm and 175*175mm.
Fast engraving speed
The XT LASER’s beam control technology allows for impressive engraving speeds of up to 10,000mm/s, 10 times faster than the average hobbyist engraver.
