آلة القطع بليزر الألياف 3kw 6kw مقارنة لقطع الكربون الصلب جيل
Fiber laser cutting machine 3kw 6kw comparison for carbon steel cutting-Jill
1,For cutting thickness
3kw cut up to 18mm carbon steel,8mm stainless steel,and 8mm aluminum.
6kw cut up to 22mm carbon steel,18mm stainless steel,and 16mm aluminum.
2,Cutting speed comparison
For stainless steel and aluminum cutting,the higher watt,the speed and cutting effect is improved a lot.
For carbon steel cutting,the higher watt,the speed is improved about 15%,but cutting effect is improved a lot.
| 3000 واط | 6000 واط | ||
| مادة | سماكة | speed m/min | speed m/min |
| الكربون الصلب | 1 | 8.0–10 | 8–10 |
| 2 | 5.0–6.5 | 5–6 | |
| 3 | 4.0–5.0 | 3.5–4.5 | |
| 4 | 3.5–4.2 | 3.2–3.8 | |
| 5 | 2.6–3.5 | 3.0–3.6 | |
| 6 | 2.5–3.2 | 4.2–5.0 | |
| 8 | 1.8–2.6 | 3.5–4.2 | |
| 10 | 1.4–2.0 | 2.2–2.8 | |
| 12 | 1.2–1.6 | 1.8–2.3 | |
| 14 | 0.9–1.2 | 1.2–1.8 | |
| 16 | 0.8–1.0 | 0.8–1.3 | |
| 18 | 0.6–0.8 | 0.6–0.9 | |
| 20 | 0.5–0.8 | ||
| 22 | 0.4–0.8 | ||
| ستانلس ستيل | 1 | 30–40 | 42–52 |
| 2 | 17–24 | 20–33 | |
| 3 | 8.0–10 | 15–22 | |
| 4 | 4.5–6.0 | 10–15 | |
| 5 | 3.0–4.0 | 8.0–12 | |
| 6 | 2.0–3.5 | 6.8–8.0 | |
| 8 | 1.5–1.7 | 3.0–4.0 | |
| 10 | 2.0–2.5 | ||
| 12 | 0.8–1.5 | ||
| 14 | 0.6–0.8 | ||
| 16 | 0.5–0.8 | ||
| 18 | 0.4–0.6 | ||
| الألومنيوم N2 |
1 | 25–38 | 42–55 |
| 2 | 15–18 | 20–40 | |
| 3 | 6.5–8.0 | 15–25 | |
| 4 | 3.5–5.0 | 9.5–12 | |
| 5 | 2.5–3.5 | 5.0–8.0 | |
| 6 | 1.5–2.5 | 3.8–5.0 | |
| 8 | 0.7–1.0 | 2.0–2.5 | |
| 10 | 1.0–1.5 | ||
| 12 | 0.8–1.0 | ||
| 16 | 0.5–0.8 | ||

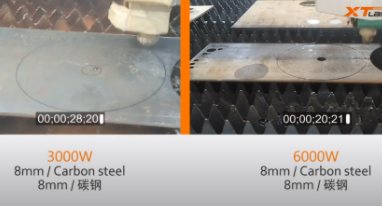

3,Share the cutting comparison between 3kw and 6kw.
| https://youtu.be/0QcEtxcA2sY |  |
| https://youtu.be/lU0jFEC9wv8 |  |
So compared to 3kw,6kw can help you cut much thicker watt and improve the cutting speed and cutting effect.
It means it will bring you more profit and business.
For 3kw fiber laser cutter machine details,check this article:
https://www.xtlaser.com/3kw-high-power/
